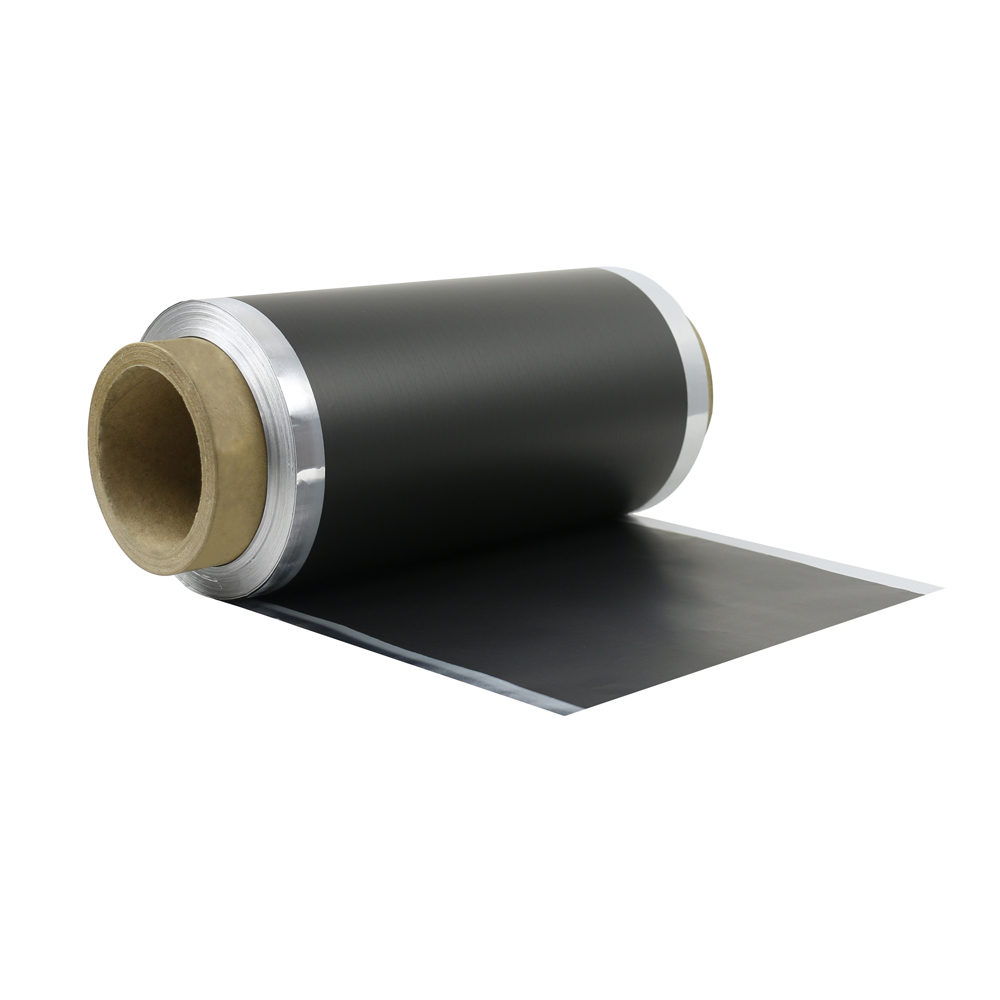

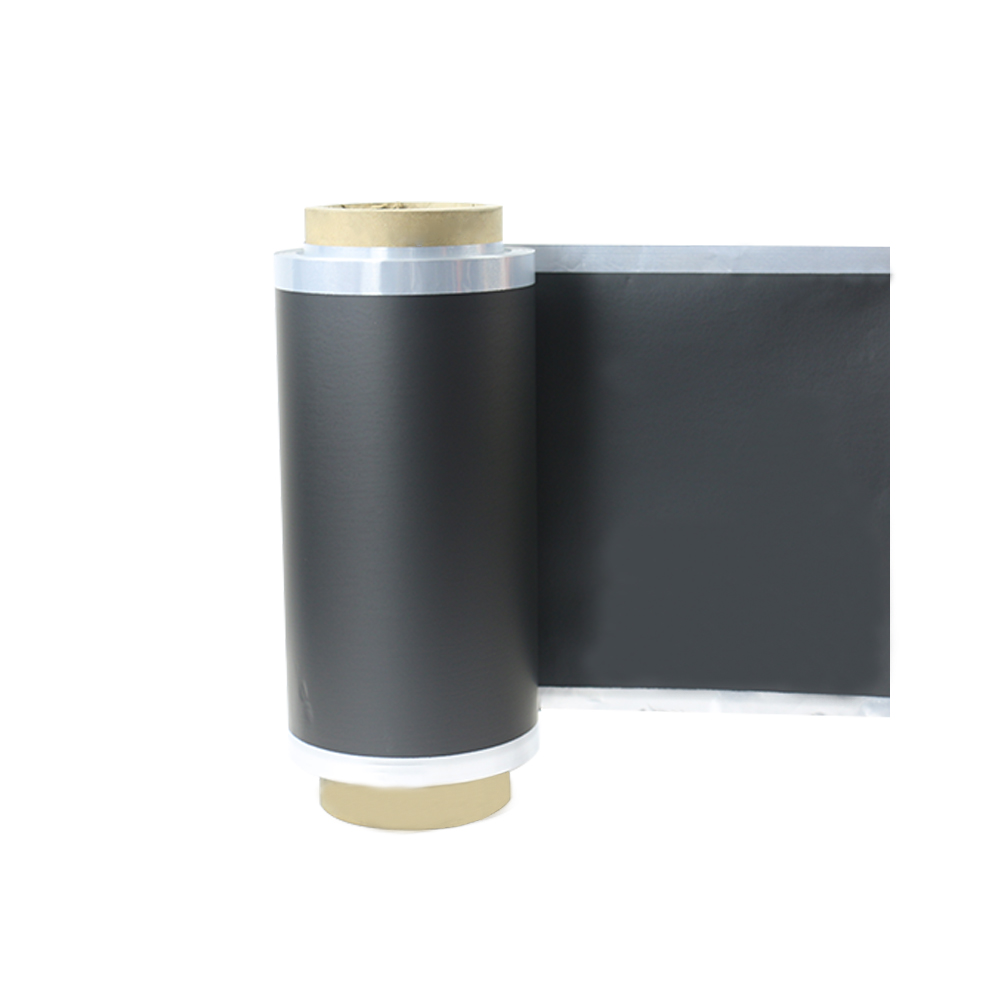

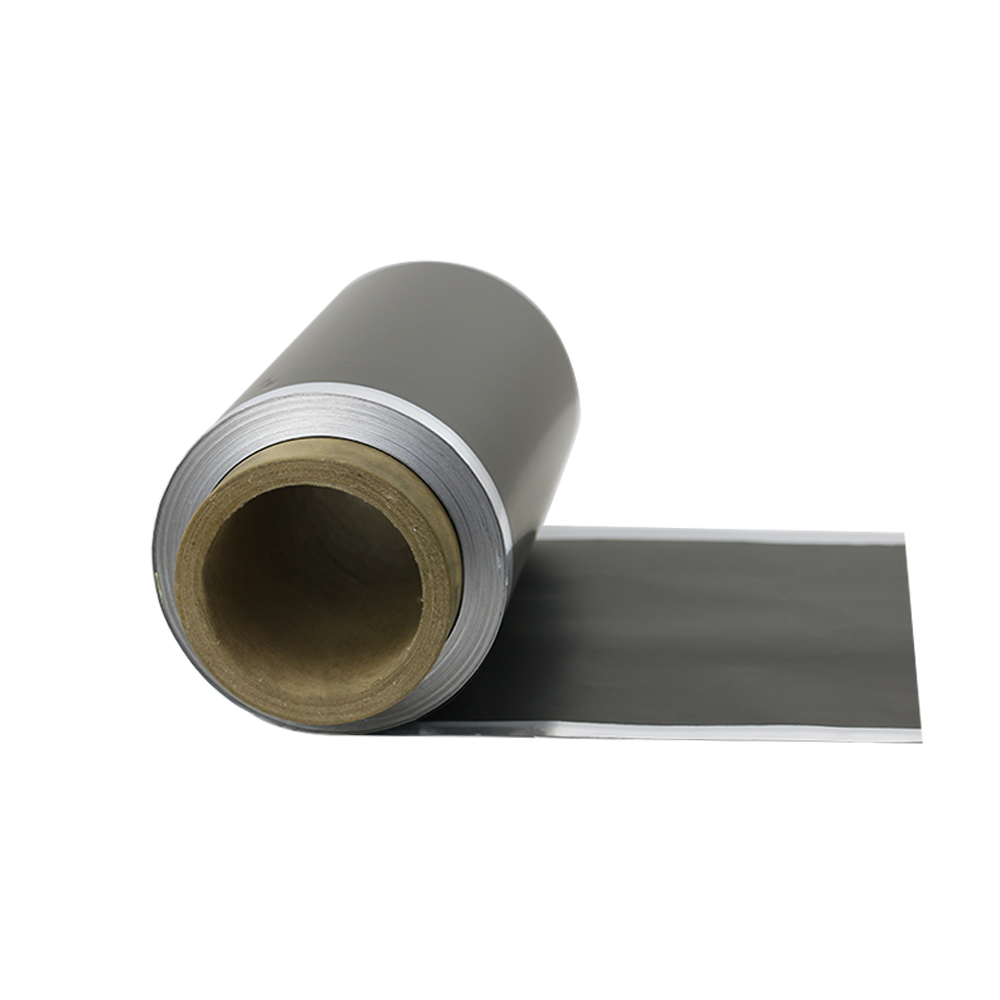

Graphene coated aluminum foil for supercapacitor/power battery
超級電容/動力電池用石墨烯涂層鋁箔
(Graphene coated aluminum foil for supercapacitor/power battery.)
|
A1 layer |
|
Etching layer |
|
Graphene layer |
Use carbon for good electrical conductivity, heat dissipation and chemical resistance.
Provides excellent electrical conductivity and greatly reduces the contact resistance between the positive/negative electrode material and the current collector.
Improve adhesion. 。Increase thermal conductivity and improve product stability
Specification：
|
Ⅰ第一碼
|
Ⅱ第二碼 |
Ⅲ、Ⅳ第三、四碼 |
Ⅳ第四碼 |
| Coating |
Adhesive
|
Thickness |
Double Thickness |
|
Coating Material |
Sort of Adhesive | Aluminum Thickness | Graphene Thickness |
|
G:Graphene
|
W:Water-based binder |
20:20um |
1:Double sidedbelow 1um |
|
T:Carbon Nanotube |
P:PVDF
|
16:16um |
2:Double sidedbelow 2um |
|
C:CarbonBlack |
H:Thermosetting binder
|
15:15um |
Customized thickness |
|
|
S:SBR |
12:12um |
|
|
|
M:Hot melt
|
|
|
Fast Charging Solution – Graphene / Carbon NanotubeAluminum foil
Lithium-ion battery substrate, combined with both binder and graphite. Excellent theoretical conductivity and thermal conductivity of graphene, efficiently collect the electrical energy and heat generated by the electroactive substance during charging and discharging.
Carbon coating AluminumFoil(鋰電)
|
產品型號 |
厚度/雙面總和 |
單位面密度(g/M2) |
拉力(Kg/cm) |
抗彎 |
素箔達因56 |
碳層達因56 |
膠帶>8N/cm |
耐溶劑(NMP,BAC) |
耐水性 |
|
GW-121 |
1 |
0.3~0.7 |
3±0.3 |
250< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-122 |
2 |
0.6~1.4 |
3±0.3 |
250< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-161 |
1 |
0.3~0.7 |
3±0.3 |
75< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-162 |
2 |
0.6~1.4 |
3±0.3 |
75< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-121 |
1 |
0.3~0.7 |
3±0.3 |
250< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-122 |
2 |
0.6~1.4 |
3±0.3 |
250< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-161 |
1 |
0.3~0.7 |
3±0.3 |
75< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-162 |
2 |
0.6~1.4 |
3±0.3 |
75< |
Pass |
Pass |
Pass |
Pass |
Pass |
Carbon coating AluminumFoil(超級電容)
|
產品型號 |
厚度/雙面總和 |
單位面密度(g/M2) |
拉力(Kg/cm) |
抗彎 |
素箔達因56 |
碳層達因56 |
膠帶>8N/cm |
耐溶劑(NMP,BAC) |
耐水性 |
|
GW-221 |
1 |
0.3~0.7 |
3.2±0.3 |
70< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-222 |
2 |
0.6~1.4 |
3.2±0.3 |
70< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-301 |
1 |
0.3~0.7 |
4.5±0.3 |
85< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-302 |
2 |
0.6~1.4 |
4.5±0.3 |
85< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-221 |
1 |
0.3~0.7 |
3.2±0.3 |
70< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-222 |
2 |
0.6~1.4 |
3.2±0.3 |
70< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-301 |
1 |
0.3~0.7 |
4.5±0.3 |
85< |
Pass |
Pass |
Pass |
Pass |
Pass |
|
GW-302 |
2 |
0.6~1.4 |
4.5±0.3 |
85< |
Pass |
Pass |
Pass |
Pass |
Pass |
用于鋰電特性測試
